Monobloc Extruder Gear Units

- MAE / MKE Series -

Discover the new MAE/MKE Series for heavy applications. Designed to offer higher performance in a compact design, the MAE/MKE Series is featuring helical and bevel gears.
The new monobloc series is based on a rigid and compact housing to fit on a maximum of applications and environment. The wide range of options and technical features maximize the type of configurations to make it the best solution for every specific field of application. Desıgned with larger roller bearings and extended center distances the MAE/MKE can handle higher loads with a longer service life of components.

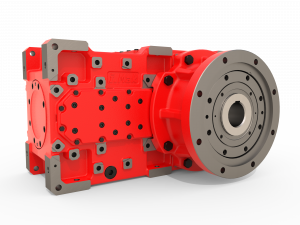

– MAE Series –

Input Options
Solid input shaft
IEC Pam flange
Integrated coupling flange
TypeTorque (max.)Shaft Diameter
MAE 402-4036080 NmØ 80
MAE 502-50310300 NmØ 95
MAE 602-60312900 NmØ 105
MAE 702-703-70419400 NmØ 115
MAE 802-803-80424100 NmØ 125
MAE 902-90329930 NmØ 135
MAE 1002-100335500 NmØ 150



Applicable Motor Power
2,2 kW  560 kW
Range of Ratios
6,028     423,479

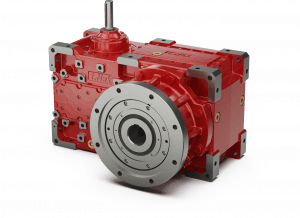

– MKE Series –

Input Options
Solid input shaft
IEC Pam flange
Integrated coupling flange



TypeTorque (max.)Shaft Diameter
MKE 403-4046100 NmØ 80
MKE 503-50410300 NmØ 95
MKE 603-60412900 NmØ 105
MKE 703-70419400 NmØ 115
MKE 803-80422520 NmØ 125
MKE 903-90429530 NmØ 135
MKE 1003-100438800 NmØ 150
Applicable Motor Power
0,55 kW     250 kW



Range of Ratios
15,674  511,760



PRODUCT ADVANTAGES

 Low vibration and low noise

 High torque ratings

 High efficiency

 Extended lifetime

FEATURES AND OPTIONS

 Available in IEC and NEMA configurations

 Backstop and brake features

 Various lubrication and cooling options

 Available in horizontal et vertical mounting

 Customized screw shank hole and extruder
