Industrial Gear Unit
- A / AE Series -
Industrial Gear Unit
- A / AE Series -
Designed for heavy industrial duties, the A / AE series present the advantages of being perfectly adapted to hard environment and tasks. The gears are designed to help the prevention of noise and vibrations during long and hard operations.

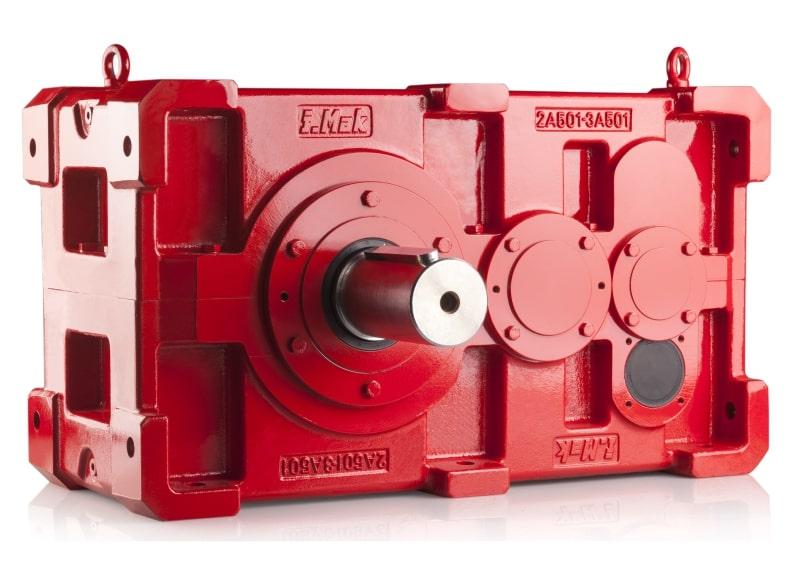

– A Series –
| Speed Range |
| 1,6 d/d 220 d/d |
| Type | Couple (max.) | Shaft Diameter |
| IR 42-43 | 90 Nm | Ø 20 |
| IR 52-53 | 190 Nm | Ø 25 |
| IR 621-631-641 | 300 Nm | Ø 30 |
| IR 62-63-64 | 400 Nm | Ø 35 |
| IR 721-731-741 | 600 Nm | Ø 35 |
| IR 72-73-74 | 850 Nm | Ø 40 |
| IR 82-83-84 | 1440 Nm | Ø 50 |
| IR 92-93-94 | 3000 Nm | Ø 60 |
| IR 102-103-104 | 4300 Nm | Ø 70 |
| IR 122-123-124 | 8000 Nm | Ø 90 |
| İR 142-143-144 | 13000 Nm | Ø 110 |
| IR 152-153-154 | 18000 Nm | Ø 120 |
| Applicable Motor Power |
| 0,37 kW 160 Kw |

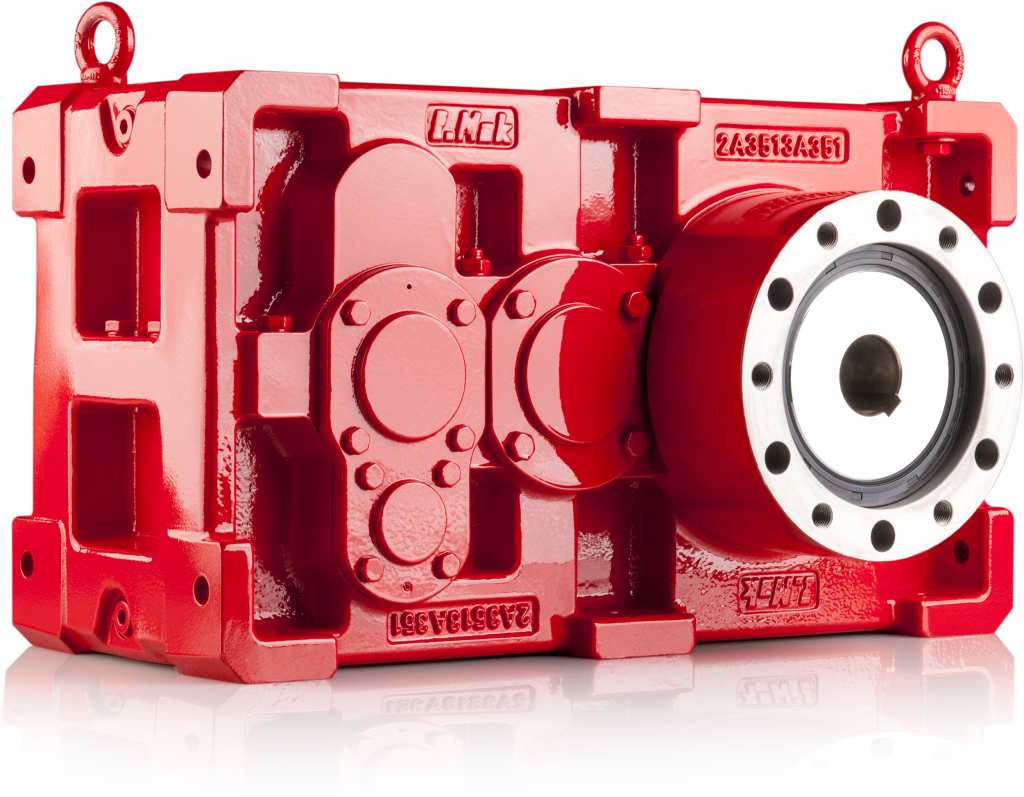

– AE Series –
| Speed Range |
| 10 d/d 220 d/d |
| Applicable Motor Power |
| 0,37 kW 160 Kw |
| Type | Torque (max.) | Shaft Diameter |
| 2AE 225 | 2040 Nm | Ø 35 |
| 2AE 275 | 4107 Nm | Ø 40 |
| 2AE 351 3AE 351 | 8000 Nm | Ø 60 |
| 2AE 430 3AE 430 | 17000 Nm | Ø 70 |
| 2AE 501 3AE 501 | 27000 Nm | Ø 90 |
| 3AE 750 4AE 750 | 33000 Nm | Ø 115 |
PRODUCT ADVANTAGES
Robust and resistant housing
High gear ratio
High torque and service factor
Long operating life
A / 2A / 3A / 4A
2AE / 3AE / 4AE
